Aluminum sheets EN AW 7075

EN AW 7075

Good mechanical properties make the material in wide area of use. It should be noted that the material thickness of 80 mm due to the strength of the core reasons, gradually decreases.

Use: blow mold, foaming mold, machine parts with increased stress in smaller thicknesses.

EN	DIN	STN	Material No.	Chem. symbol
AW 7075	AlZnMgCu1,5	42 4222	3.4365	AlZn5,5MgCu

Chemical properties / Percentage of alloying elements (%) *

S I	F E	C U	M N	C R	Z N	ZR + TI	other
0,2 - 0,8	0,70	3,5 - 4,5	0,4 - 1,0	0,10	0,25	0,25	0,15

* Aluminum and normal impurities form the rest

Suitability of use

Cold forming/

Thermoforming

Welding

Corrosion

resistance

Anodizing

Cutting

Stability after

machining

bad

medium

good

medium / bad

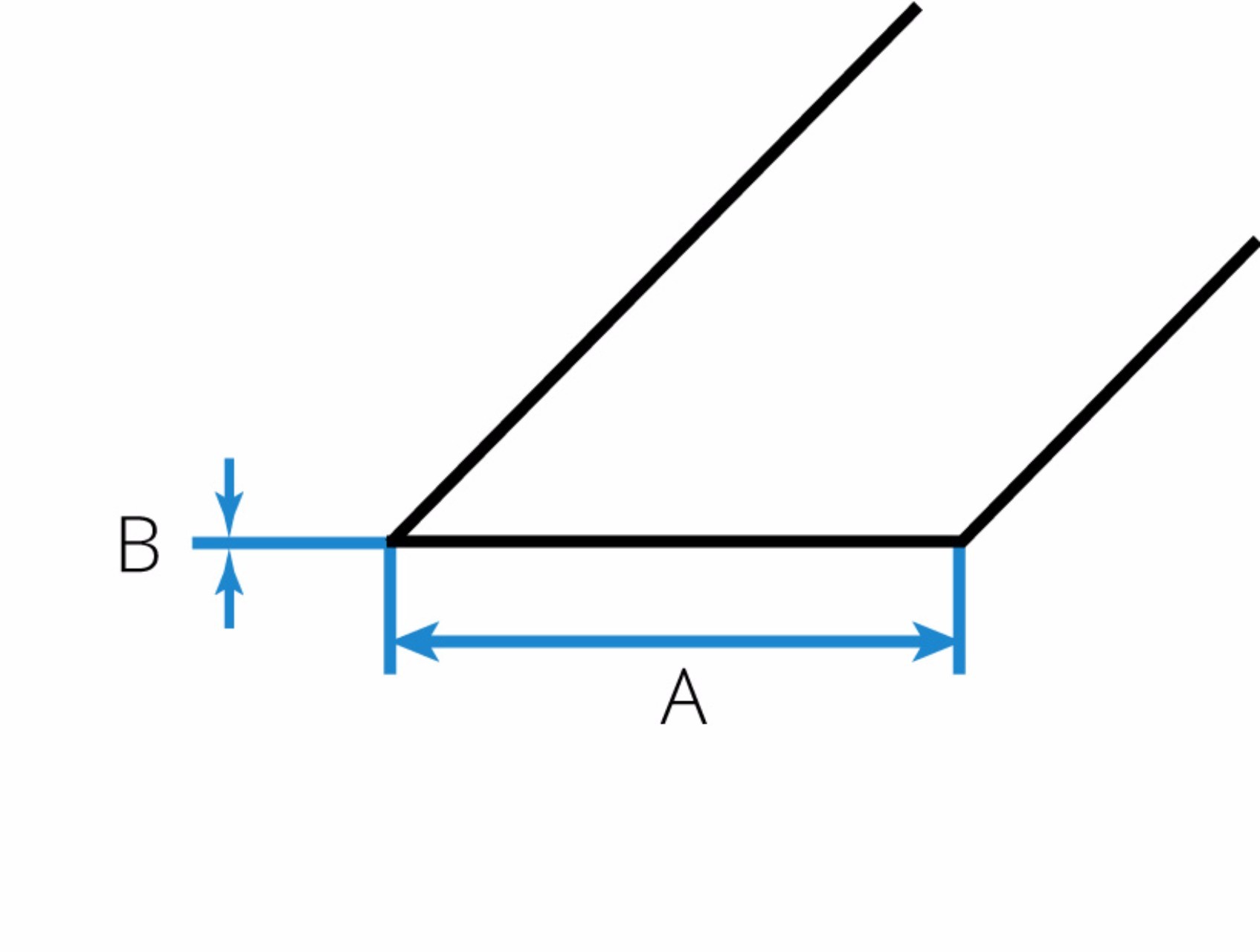

Thickness mm	Width mm	Length mm	weight kg/m2
5.00	1000	2000	13.50
6.00	1000	2000	16.20
6.00	1250	2500	16.20
8.00	1000	2000	21.60
8.00	1250	2500	21.60
10.00	1000	2000	27,0
10.00	1250	2500	27,0
12.00	1000	2000	32.40
12.00	1250	2500	32.40
15.00	1000	2000	40.50
15.00	1250	2500	40.50
20.00	1000	2000	54.00
20.00	1250	2500	54.00
25.00	1000	2000	67.50
25.00	1250	2500	67.50
30.00	1000	1800	81.00
30.00	1250	2500	81.00
35.00	1000	2000	94.50
35.00	1250	2500	94.50
40.00	1000	2000	108.00
40.00	1250	2500	108.00
45.00	1000	2000
50.00	1000	2000	135.00
50.00	1250	2500	135.00
60.00	1000	2000	162.00
70.00	1000	2000	189.00
80.00	1000	2000	216.00
90.00	1000	2000	243.00
100.00	1000	1800	270.00
120.00	1000	2000	324,0
150.00	1000	2000	405,0

Mechanical properties

State	Thickness (mm) from - to	Strength Rm (MPa) min	Yield strength Rp 0,2 (MPa) min	Fold		Hardness HBS
State	Thickness (mm) from - to	Strength Rm (MPa) min	Yield strength Rp 0,2 (MPa) min	180°	90°	Hardness HBS
T4/ T451	0,4 - 1,5	390,0	245,0	3,0 t	3,0 t	110,0
	1,5 - 6,0	390,0	245,0	5,0 t	5,0 t	110,0
	6,0 - 12,5	390,0	260,0	-	8,0 t	110,0
T451	12,5 - 40,0	390,0	250,0	-	-	110,0
	40 - 100	385,0	240,0	-	-	108,0
	100 - 120	370,0	240,0	-	-	105,0
	120 - 150	350,0	240,0	-	-	101,0
